YABO 48V 100Ah 5KW Rack Mount Battery LiFePO4 Deep Cycle System

YABO 48V 100Ah 5KW Rack Mount Battery LiFePO4 Deep Cycle System

UT48100H-1

Specification：
1. Brand: YABO
2. Dimension: 482.6*530*178mm
3. Battery Type: LiFePO4 Battery/lithium Battery
4. Electric Energy: 5120Wh
5. Warranty: 5 years
6. Weight: About 39-45kg
7. Cycle life: 6000-10000 cycles
8. Product Name: 51.2V 100Ah LiFePO4 Battery Rack Mount Systems
9. System Type: Rack-mounted
10. Application: Home Energy Storage, RV, Tower Base Station

Quantity

Contact Now

add to cart

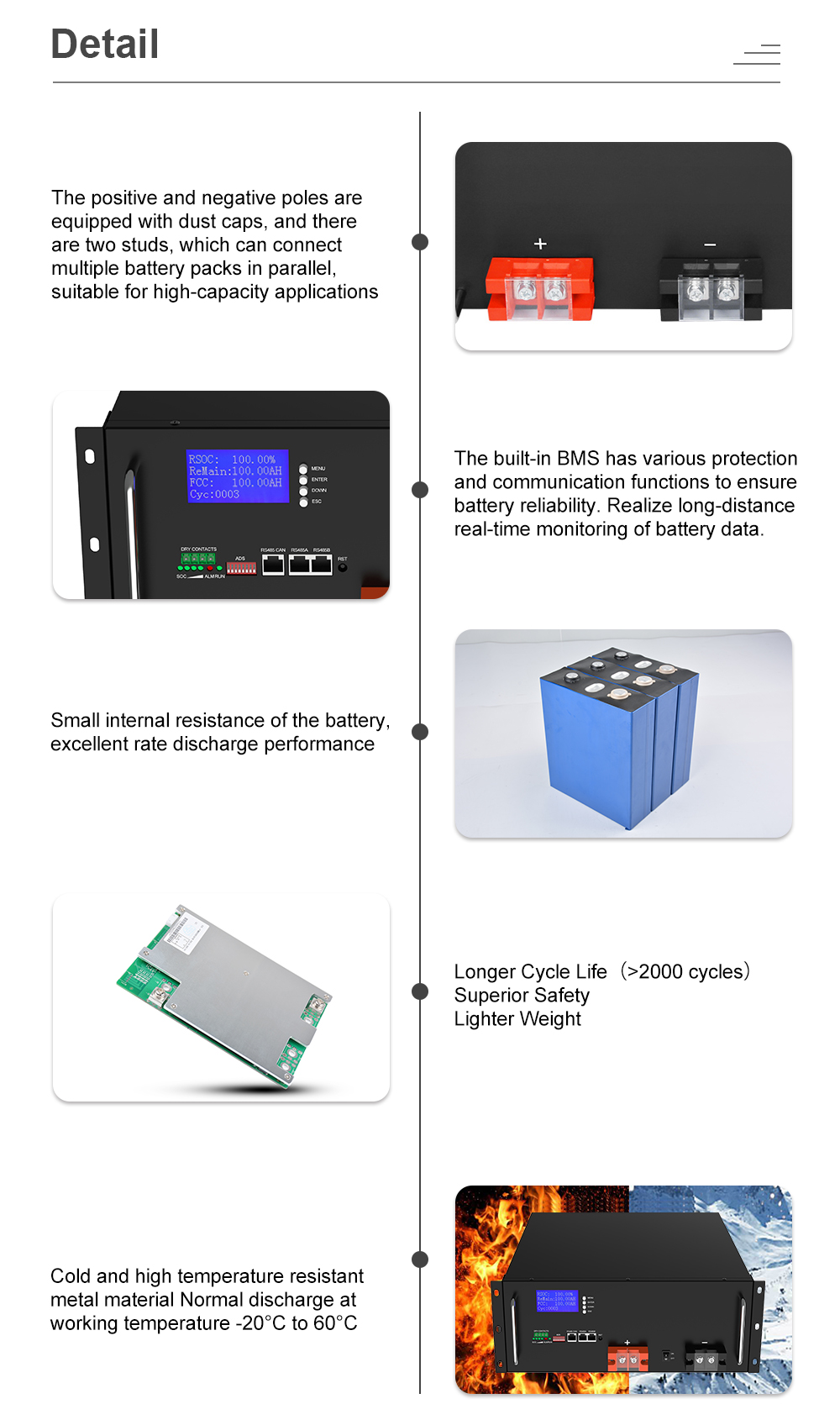

1.The Description of LiFePO4 48V Rack Mount Battery:

Electrical Characteristics	Nominal Voltage	lifepo4 48V
	Nominal Capacity	100Ah@0.2C
	Energy	5120Wh
	Internal Resistance	≤35mΩ
	Cycle Life	6000-10000 Cycles
	Product Name	48V 100Ah Rack Mount Battery LiFePO
Standard Charging	Max.Charging Voltage	14.0~14.6V
	Charging Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
	Charging Mode
	Charging Current	100A
	Max.Charging Current	100A
Standard Discharging	Discharging Current	100A
	Max. Continuous Current	100A
	Max.Pulse Current	110A(<10S）
	Discharging Cut-off Voltage	40
Operating Condition	Charge Temperature	0℃ to 45℃(32℉ to 113℉)
	Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉)
	Storage Temperature	0℃ to 45℃(32℉ to 113℉)
	Water Dust Resistance	IP55
Structure	OEM ODM	YES
	Casing	Mental
	Dimension(LWH*TH)	482.6530178mm 4U
	Weight	Approx.39-45Kg
	Communication Interface	RS485A+RS485B
	Communication Interface	CAN or RS485

LiFePO4 48v rack mount battery are a highly efficient, long-lasting energy storage solution used in a wide range of applications such as renewable energy systems, telecom equipment and data centers. These lifepo4 rack mount battery /batteries are known for their high energy density and long cycle life, typically providing thousands of charge/discharge cycles with low self-discharge rates and excellent safety. An integrated lifepo4 battery management system ensures performance and safety and is designed for lifepo4 rack mount battery for easy expansion and installation. Adaptability and stability make lifepo4 rack mount battery ideal for a variety of energy reserve and backup power applications.
