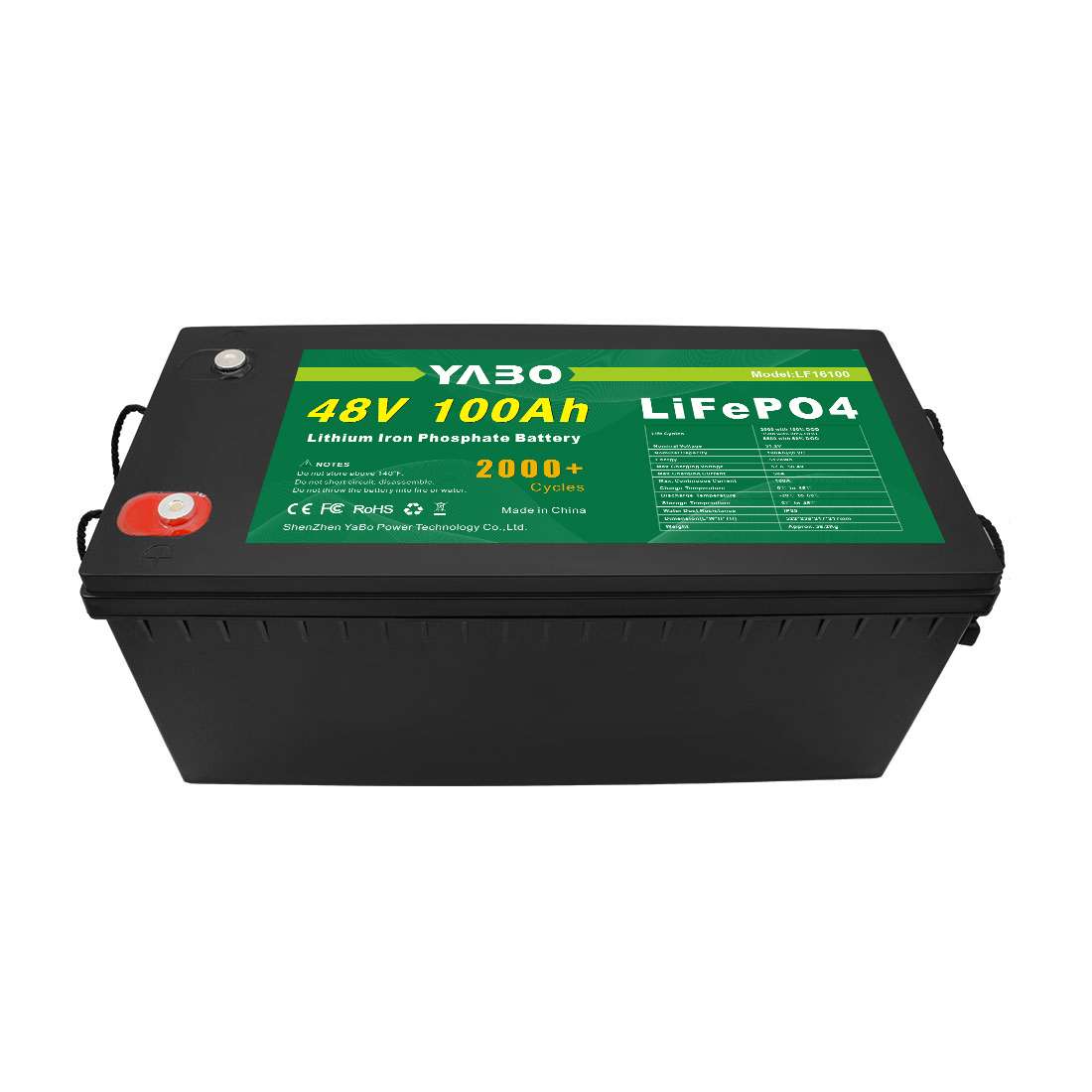

YABO 48V 100Ah LiFePO4 Storage System
YB-LP48100H-2
Specification：
1. Brand: YABO
2. Dimension: 640*245*220mm
3. Battery Type: LiFePO4 Battery Pack
4. Weight: Approx. 37.5Kg
5. Cycle life: 6000cycles
6. Energy: 5120Wh
7. Capacity: 48V 100Ah LiFePO4 Battery
8. OEM/ODM Customized: OEM ODM Battery Pack
9. Output Power Range: 0-5 kWh
10. Application: UPS、Solar & Wind Power System、Golf Cart、Electric Vehicle , E-bike, E-rickshaw etc.、Lighting
1. Brand: YABO
2. Dimension: 640*245*220mm
3. Battery Type: LiFePO4 Battery Pack
4. Weight: Approx. 37.5Kg
5. Cycle life: 6000cycles
6. Energy: 5120Wh
7. Capacity: 48V 100Ah LiFePO4 Battery
8. OEM/ODM Customized: OEM ODM Battery Pack
9. Output Power Range: 0-5 kWh
10. Application: UPS、Solar & Wind Power System、Golf Cart、Electric Vehicle , E-bike, E-rickshaw etc.、Lighting
Quantity
1.The Description of 48V LiFePO4 Storage System:
| Electrical Characteristics | Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah@0.2C | |
| Energy | 5120Wh | |
| Internal Resistance | ≤35mΩ | |
| Cycle Life | 6000 Cycles | |
| Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charging | Charging Current | 50A |
| Max.Charging Current | 100A | |
| Standard Discharging | Discharging Current | 50A |
| Max. Continuous Discharging Current | 100A | |
| Max.Pulse Current | 100A(10S) Can be set up | |
| Discharging Cut-off Voltage | 40.0 V | |
| Structure | Cell & Format | CATL30174133 (16S1P) |
| Casing | Plastic | |
| Max.Dimension (L*W*H) | 640*245*220mm | |
| Weight | Approx.37.5Kg |
2.The Attributes of 48V LiFePO4 Storage System:
- 48V 100Ah LiFePO4 Storage System: 48V 100AH LiFePO4 Storage System powered by A-grade cells, providing superior energy density and stable performance. It can be used for more than 6000 cycles. Operating temperature range: charging 0~45℃, discharging: -20~60℃; temperature protection. Compared with lead-acid batteries, the lifespan is more than eight times longer.
- Small Size Lifepo4 Battery: The 48V 100Ah LiFePO4 Storage System weighs only 38kg,sizes only L*W*H:640*245*220mm, which is only 1/3 of lead-acid battery.It is relatively light and easy to install. It is an ideal choice for powering outdoor campsites and easy installation indoors.
- Advanced BMS Protection: Equipped with a robust Battery Management System (BMS), this 48v LiFePO4 Storage System is fortified against potential damage from high temperatures, low temperatures, short circuits, overcurrent, and overload. Its exceptional thermal and chemical stability eliminates the need for regular maintenance, saving you valuable time and money.
- Suitable Many Application: 48v 100ah LiFePO4 Storage System have wide range of applicationsUPS, solar & wind Power system, golf cart, electric vehicle, e-bike, lighting, etc...
3.The Advantages of 48V LiFePO4 Storage System:
◆ using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance.
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Does not support series applications, the maximum support 15 batteries parallel.
