YABO 48V 230Ah LiFePO4 Wall Mount Battery Pack For Home Energy Storage System
WM1611K-1
Specification:
1. Brand Name: YABO
2. Electric Energy: 11776 Wh
3. Weight: 88kg
4. Size: 480*490*275mm
5. Output Power Range: 10~20 KWh
6. Cycle life: 6000 cycles
7. Capacity: 48V 230Ah LiFePO4 Battery
8. System Type: Wall-mounted
9. Compatible inverter: GOODWE, Growatt,Victron ,MUST,SRNE, MEGAREVO,Deye, INVT,Voltronic ect
10. Application: Solar, Wind, UPS Solar Power System Home
11. Communication Port: CAN, rs485, WIFI, 4G, Blue Tooth
1. Brand Name: YABO
2. Electric Energy: 11776 Wh
3. Weight: 88kg
4. Size: 480*490*275mm
5. Output Power Range: 10~20 KWh
6. Cycle life: 6000 cycles
7. Capacity: 48V 230Ah LiFePO4 Battery
8. System Type: Wall-mounted
9. Compatible inverter: GOODWE, Growatt,Victron ,MUST,SRNE, MEGAREVO,Deye, INVT,Voltronic ect
10. Application: Solar, Wind, UPS Solar Power System Home
11. Communication Port: CAN, rs485, WIFI, 4G, Blue Tooth
Quantity
1.The Specification 48V LiFePO4 Wall Mount Battery:
Brand Name | YABO |
Nominal Voltage | 48V |
Nominal Capacity | 230Ah |

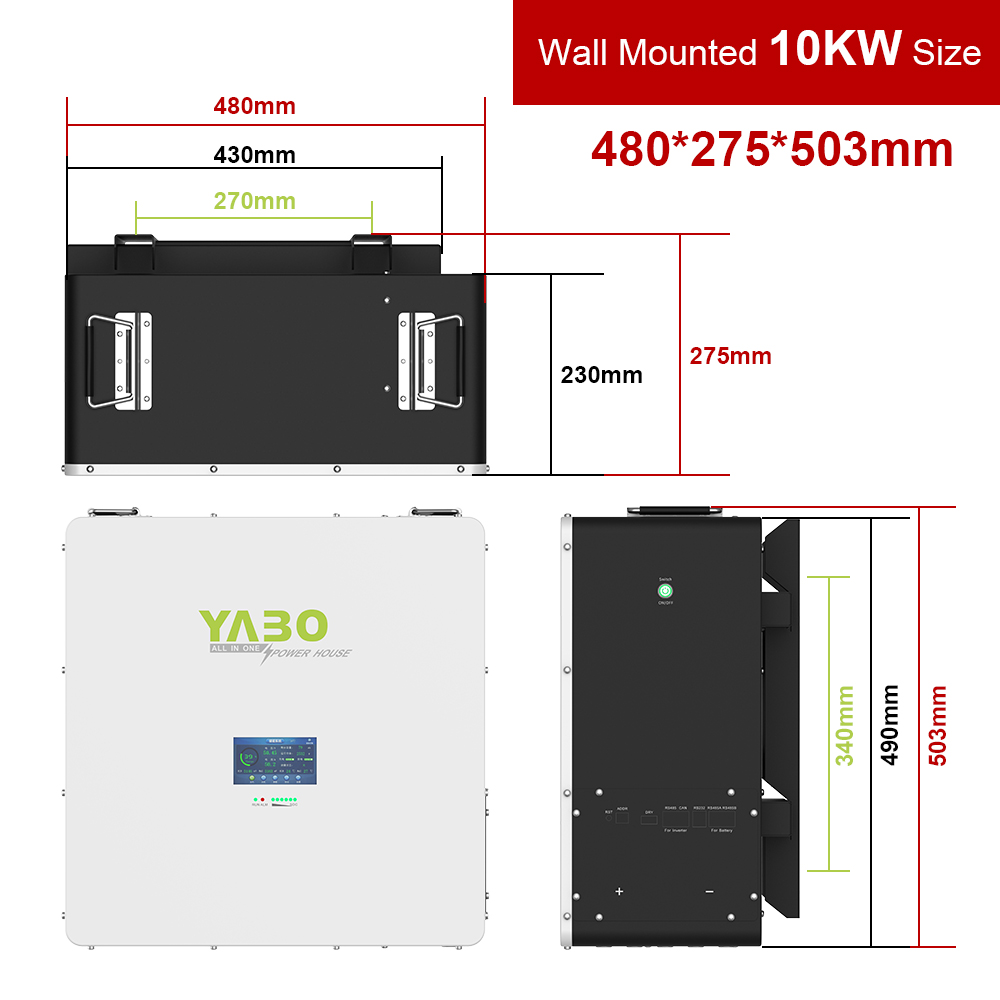

Size (L*W* H) | 480*490*275mm |
Weight | 88kg |
Cycle Life | 6000 times ,80% DOD |
Maximum Parallel Quantity | 15PCS |
Warranty | 5 years |
Working Temperature | 0 ~ 5 0℃ |
Shelf Temperature | -20~ 6 0℃ |
Communication Interface | RS485/CAN / RS232/ Dry contact |
Certificate | ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB |
Customization | OEM, ODM |
Application | Household energy storage. |
System Type | wall mount battery |
Product Name | lifepo4 48v wall mount battery |
2.The Advantage of 48V LiFePO4 Wall Mount Battery:
- Lithium Iron Phosphate (LiFePO4) Chemistry: Known for its high safety, thermal stability, and long cycle life.
- 48V System:48v Lifepo4 wall mount battery suitable for home energy storage applications, providing compatibility with various inverters and home energy management systems.
- High Energy Density: Offers substantial energy storage capacity in a compact form factor.
- Long Cycle Life: Typically offers over 4,000 charge-discharge cycles, ensuring a long service life.

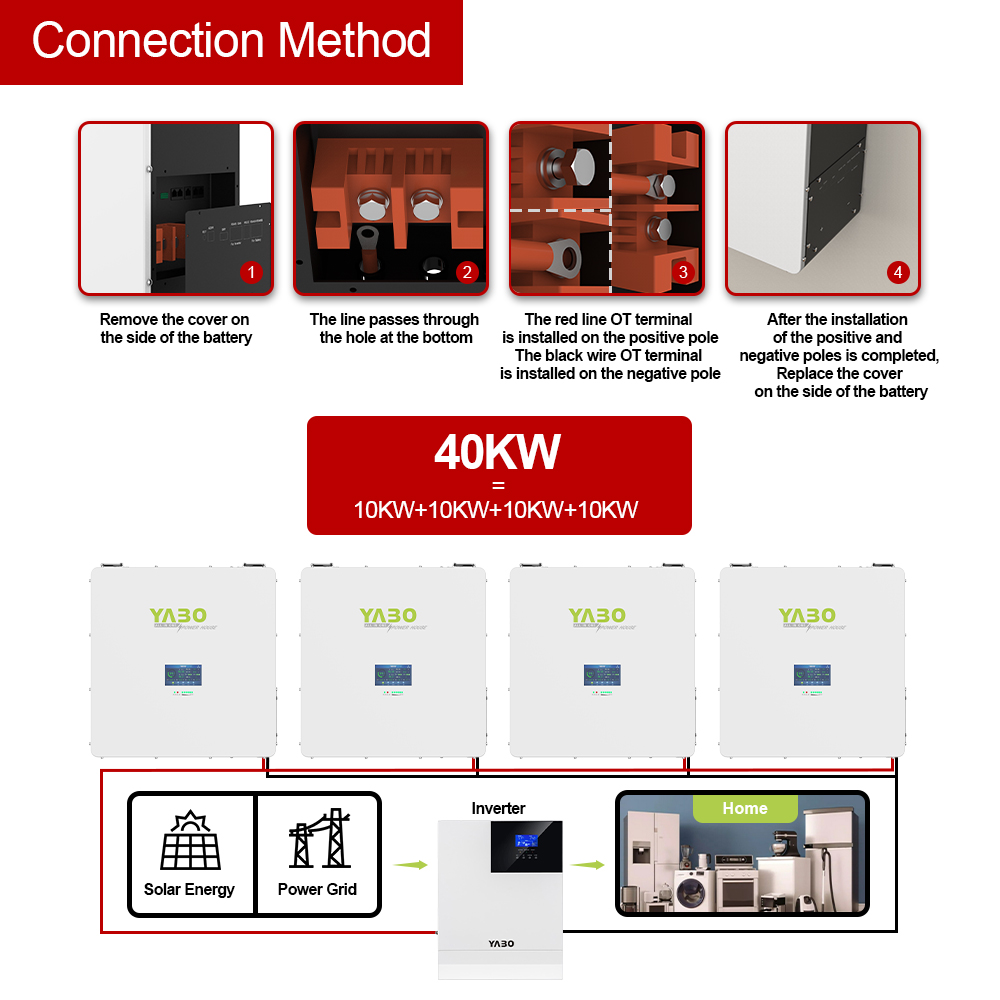

- Scalability: Can be connected in parallel to increase storage capacity as needed.
- Built-in Battery Management System (BMS): 48V Lifepo4 wall mount battery ensures safe and efficient operation by monitoring and managing cell voltage, temperature, and current.
- High Efficiency: 48V Lifepo4 wall mount battery provides efficient charge and discharge performance, optimizing energy use and reducing waste.
- Fast Charging Capability:48V Lifepo4 wall mount battery supports rapid charging, reducing downtime and maximizing availability.
- Environmentally Friendly: 48v lifepo4 wall mount battery are considered more eco-friendly compared to other lithium-ion chemistries due to their non-toxic nature.
2.The Advantages of 48V LiFePO4 Wall Mount Battery:
- Overcurrent Protection
- Overvoltage Protection
- Overcharge Discharge Protection
- Short Circuit Protection
- Temperature Protection
