YABO 48V 300Ah Lithium Iron Phosphate Rack-Mounted Power Unit
UT48300L-6
Specification：
1. Brand: YABO
2. Capacity: 51.2V 300Ah Rack-mount LiFePO4 Battery
3. Battery Type: LiFePO4 Battery/lithium Battery
4. Output Power Range: 5~10 kWh
5. Warranty: 5 years
6. Weight: Approx. 121Kg
7. Cycle life: 6000cycles
8. Dimension: 482.6*735*245（5.5U）
9. System Type: Rack-mounted
10. Application: Home Energy Storage, RV, Tower Base Station
1. Brand: YABO
2. Capacity: 51.2V 300Ah Rack-mount LiFePO4 Battery
3. Battery Type: LiFePO4 Battery/lithium Battery
4. Output Power Range: 5~10 kWh
5. Warranty: 5 years
6. Weight: Approx. 121Kg
7. Cycle life: 6000cycles
8. Dimension: 482.6*735*245（5.5U）
9. System Type: Rack-mounted
10. Application: Home Energy Storage, RV, Tower Base Station
Quantity

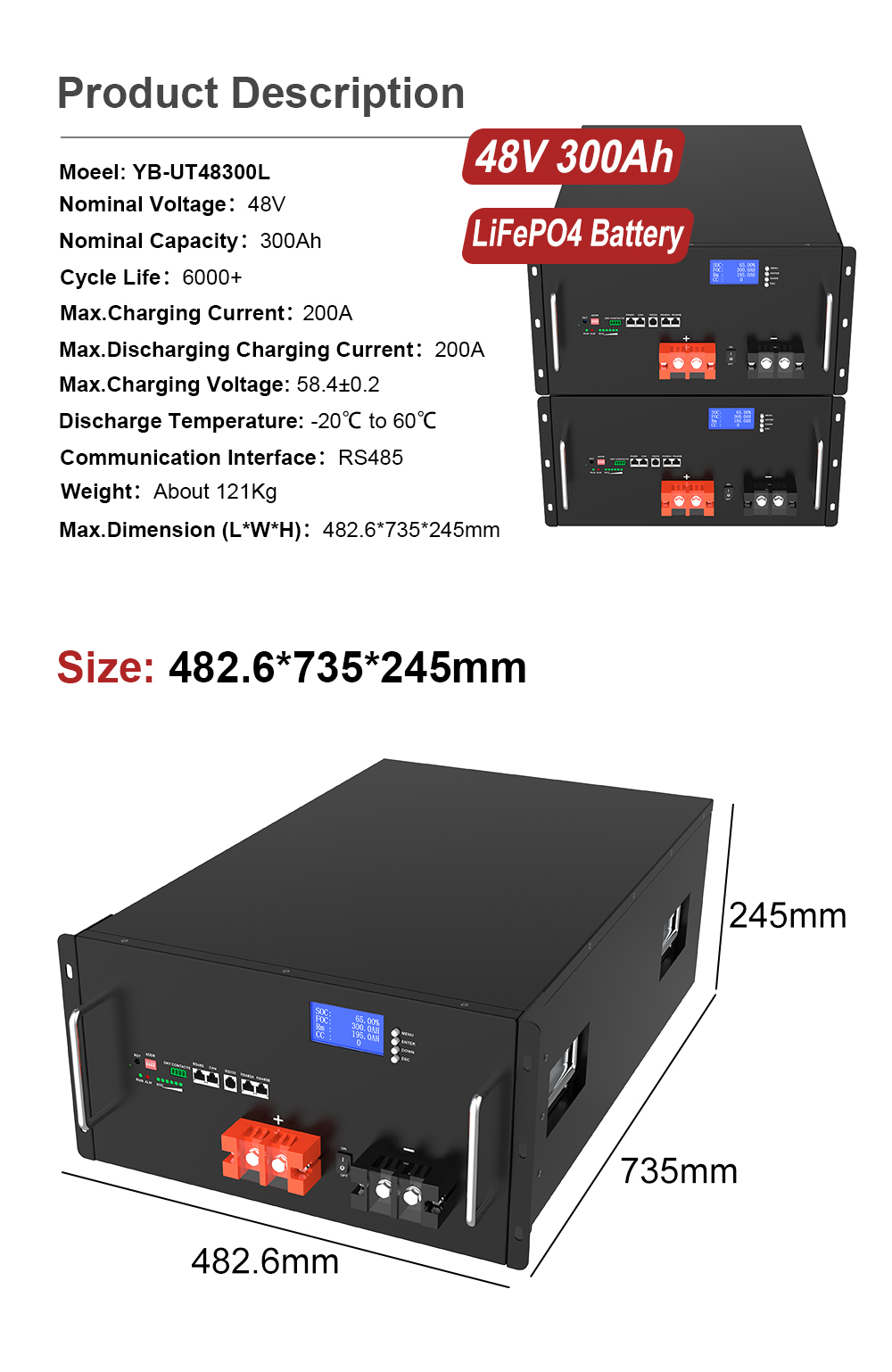

1.The Description of 48V Lithium Iron Phosphate Rack-Mounted Power Unit:
Nominal Voltage | 48V |
Nominal Capacity | 300Ah |
Size (L*W* H) | 482.6*735*245mm |
Weight | 121kg |
Electric Energy | 15360 Wh |
Cycle Life | 6000 times ,80% DOD |
Maximum Parallel Quantity | 15PCS (48V 176.64Kwh) |
Warranty | 5 years |
Ambient Temperature | - 15 ~ 5 5℃ , > 4 5℃ |
Communication Interface | RS485/CAN / RS232/ Dry contact |
Certificate | ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB |
Product Name | 48V Lithium Iron Phosphate Rack-Mounted Power Unit |

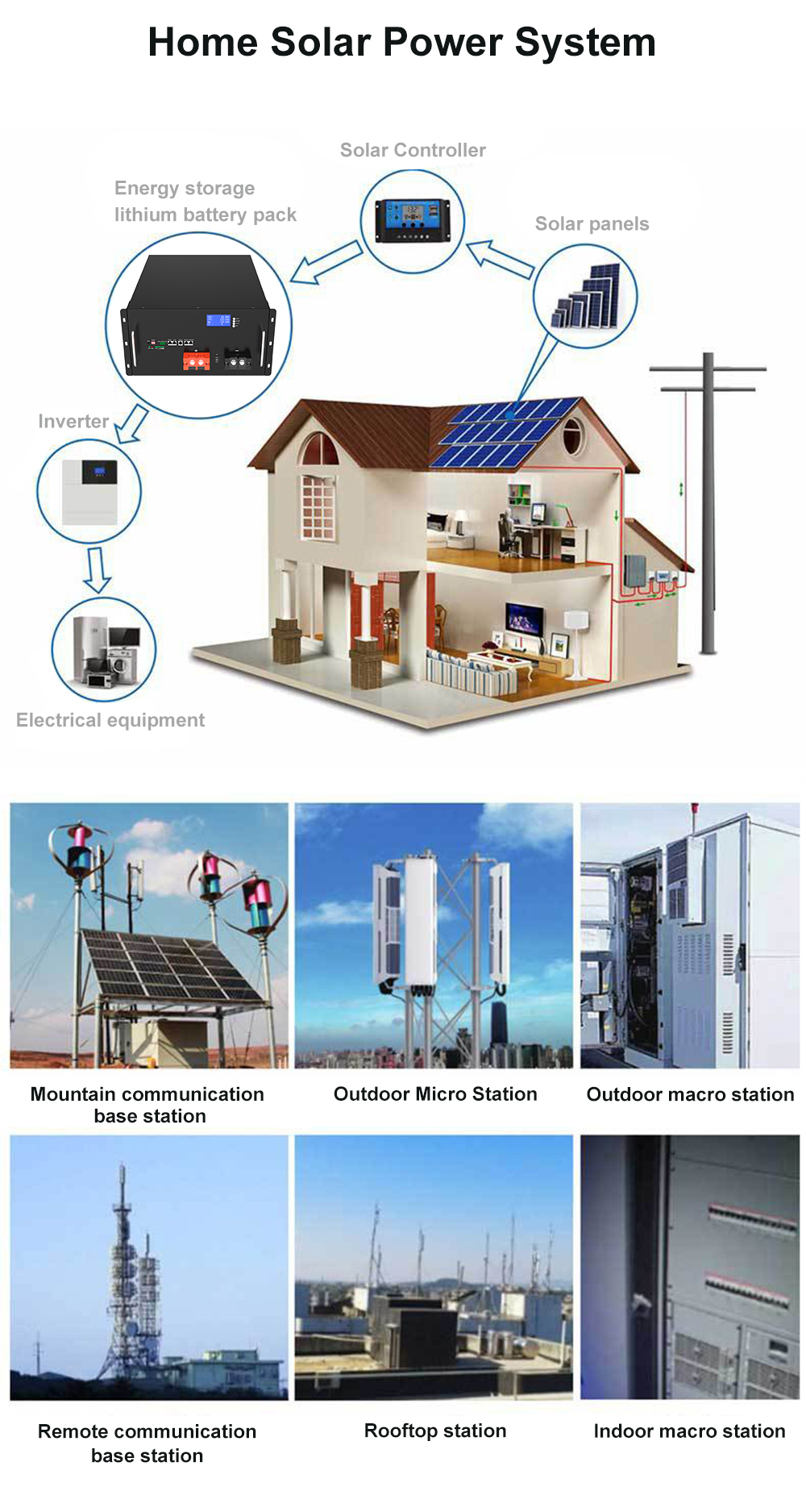

Application | Household energy storage, integrated base stations, etc. |
2.The Advantage of 48V Lithium Iron Phosphate Rack-Mounted Power Unit:
YaBo Power's 48V Lithium Iron Phosphate Rack-Mounted Power Unit is an efficient and reliable household and commercial energy storage unit solution.Using advanced lithium iron phosphate technology, the battery provides excellent safety, thermal stability and a cycle life of more than 6,000 times, even at a depth of discharge (DoD) of 80%. It also performs well. Its 48v voltage ensures compatibility with various inverters and energy management systems, flexible design and easy integration.The rack-mounted design optimizes the use of space and makes installation simple and fast.The powerful battery management system (BMS) provides comprehensive real-time monitoring and protection functions to effectively prevent overvoltage, overcurrent and overheating, and ensure that the rack-mountable is always running stably.Whether 48V Lithium Iron Phosphate Rack-Mounted Power Unit is used for energy storage in solar systems, backup power supply, or load transfer, the 48V Lithium Iron Phosphate Rack-Mounted Power Unit is an ideal choice for households and businesses pursuing reliable and environmentally friendly energy solutions.
