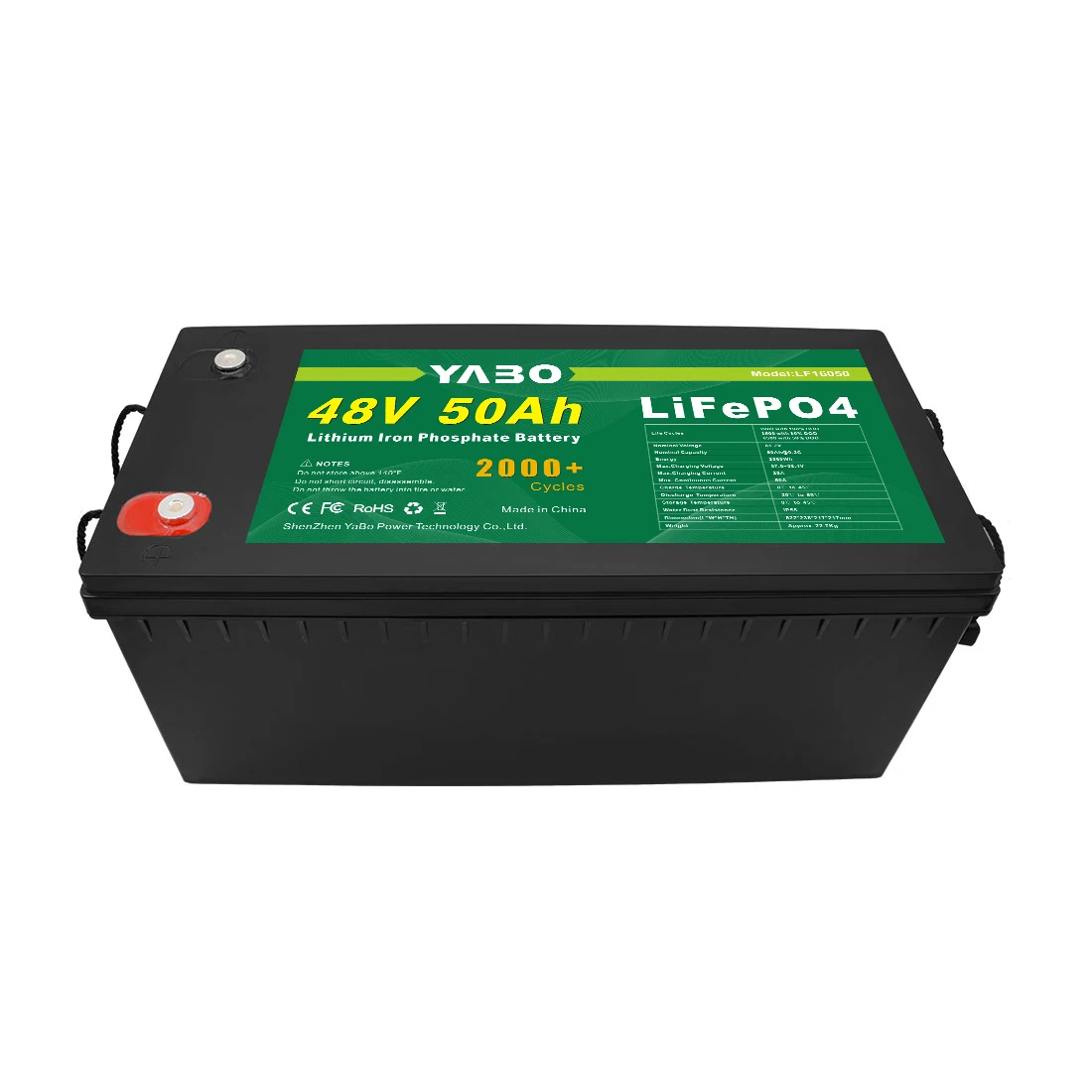

YABO 48V 50Ah LiFePO4 Storage System
YB-LP4850L-9
Specification：
1. Brand: YaBo Power
2. Dimension: 522*238*217mm
3. Capacity: 51.2V 50Ah
4. Weight: Approx. 27.4Kg
5. Cycle life: 6000cycles
6. Energy: 2560Wh
7. Application: UPS,Solar&Wind Power System,E-Bike,E-rickshaw
8. Output Power Range: 0-5 kWh
9. Battery Type: LiFePO4 Battery
10. Operating Temperature: -20℃ to 60℃(-4℉ to 140℉)
1. Brand: YaBo Power
2. Dimension: 522*238*217mm
3. Capacity: 51.2V 50Ah
4. Weight: Approx. 27.4Kg
5. Cycle life: 6000cycles
6. Energy: 2560Wh
7. Application: UPS,Solar&Wind Power System,E-Bike,E-rickshaw
8. Output Power Range: 0-5 kWh
9. Battery Type: LiFePO4 Battery
10. Operating Temperature: -20℃ to 60℃(-4℉ to 140℉)
Quantity
1.The Description of 48V LiFePO4 Storage System:
| Electrical Characteristics | Nominal Voltage | 48V |
| Nominal Capacity | 50Ah@0.2C | |
| Energy | 2560Wh | |
| Internal Resistance | ≤35mΩ | |
| Cycle Life | 6000 Cycles | |
| Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charging | Charging Current | 25A |
| Max.Charging Current | 50A | |
| Standard Discharging | Discharging Current | 25A |
| Max. Continuous Discharging Current | 50A | |
| Max.Pulse Current | 50A(10S) Can be set up | |
| Discharging Cut-off Voltage | 40.0 V | |
| Structure | Cell & Format | CATL30174133 (16S1P) |
| Casing | Plastic | |
| Max.Dimension (L*W*H) | 522*238*217*217mm | |
| Weight | Approx.22.7Kg |
2.The Attributes of 48V LiFePO4 Storage System:
- 48V 50Ah LiFePO4 Storage System: 48V LiFePO4 Storage System powered by A-grade cells, providing superior energy density and stable performance. It can be used for more than 6000 cycles. Operating temperature range: charging 0~45℃, discharging: -20~60℃; temperature protection. Compared with lead-acid batteries, the lifespan is more than eight times longer.
- Small Size LiFePO4 Battery : The 48V LiFePO4 Storage System weighs only 23kg, sizes only L*W*H:522*238*217*217mm, which is only 1/3 of lead-acid battery. It is relatively light and easy to install. It is an ideal choice for powering outdoor campsites and easy installation indoors.
- Advanced BMS Protection: Equipped with a robust Battery Management System (BMS), this 48v LiFePO4 Storage System is fortified against potential damage from high temperatures, low temperatures, short circuits, overcurrent, and overload. Its exceptional thermal and chemical stability eliminates the need for regular maintenance, saving you valuable time and money.
