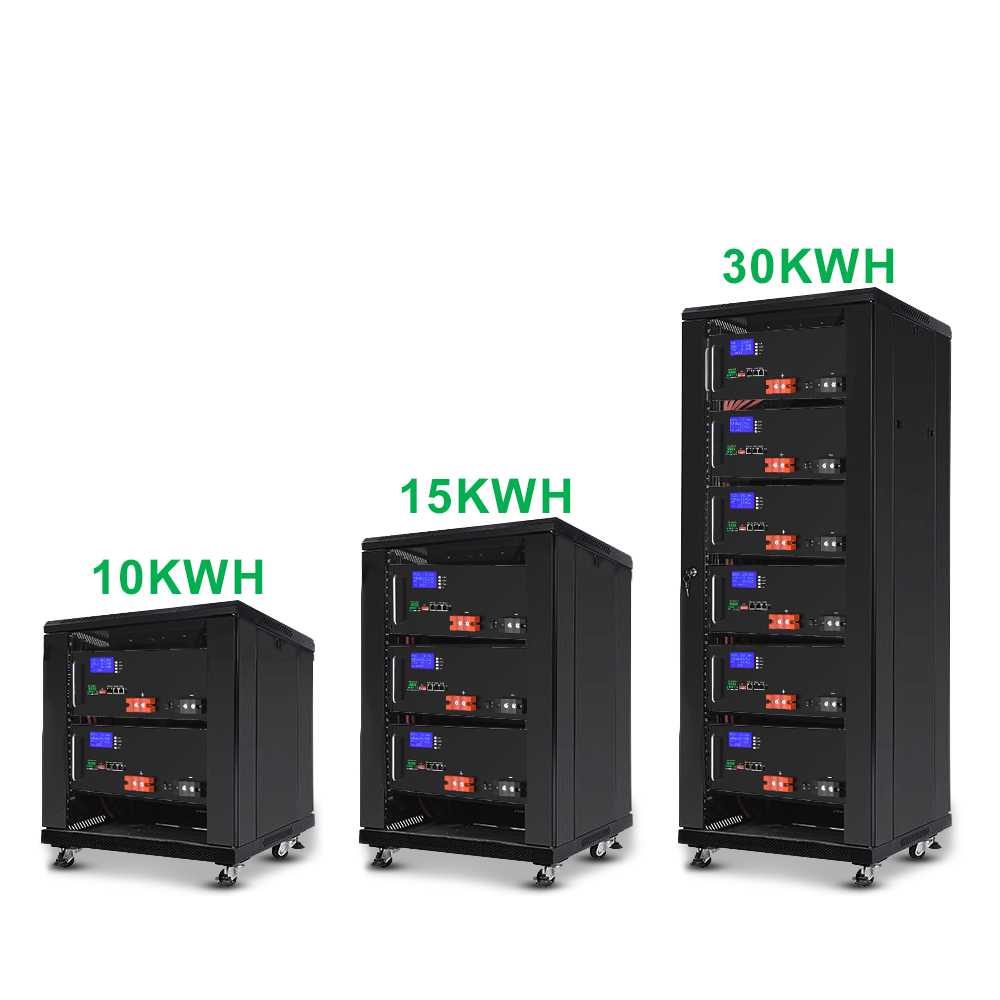

YABO 48V Lithium Iron Phosphate Rack-Mounted Storage Solution
UT48280L-6
Specification：
1. Brand: YABO
2. Product name: 48V 280Ah Lithium LiFePO4 Battery
3. Battery Type: LiFePO4 Battery/lithium Battery
4. Output Power Range: 5~10 kWh
5. Warranty: 5 years
6. Weight: Approx. 119Kg
7. Cycle life: 6000 cycles
8. Dimension: 482.6*735*245mm
9. Application: BOATS, SUBMARINES, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, UPS, Solar & Wind Power System
1. Brand: YABO
2. Product name: 48V 280Ah Lithium LiFePO4 Battery
3. Battery Type: LiFePO4 Battery/lithium Battery
4. Output Power Range: 5~10 kWh
5. Warranty: 5 years
6. Weight: Approx. 119Kg
7. Cycle life: 6000 cycles
8. Dimension: 482.6*735*245mm
9. Application: BOATS, SUBMARINES, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, UPS, Solar & Wind Power System
Quantity

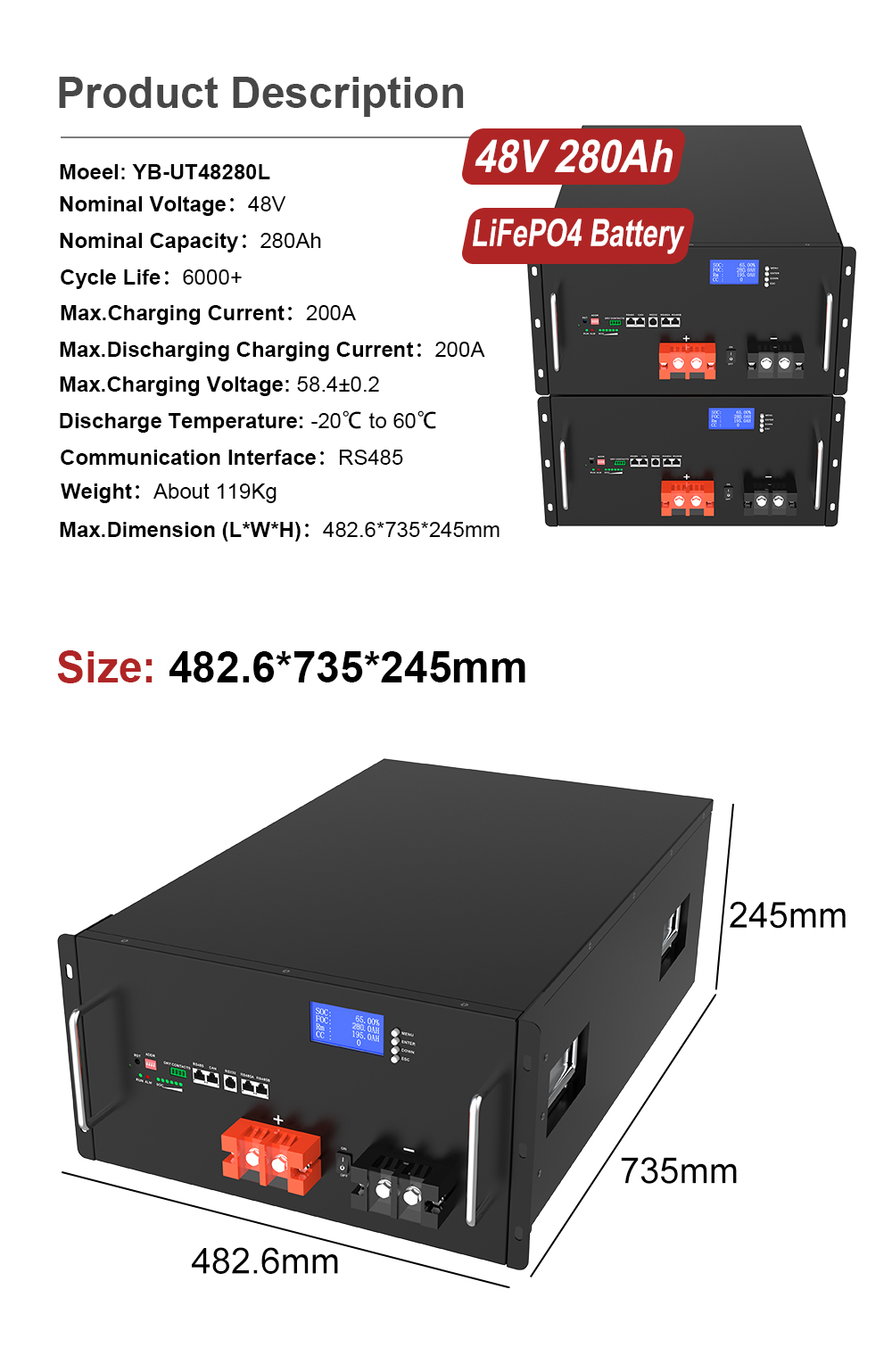

1.The Description of 48V Lithium Iron Phosphate Rack-Mounted Storage Solution:
Nominal Voltage | 48V |
Nominal Capacity | 280Ah |
Size (L*W* H) | 482.6*735*245mm |
Weight | 119kg |
Cycle Life | 6000 times ,80% DOD |
Maximum Parallel Quantity | 15PCS (48V 176.64Kwh) |
Warranty | 5 years |
Ambient Temperature | - 15 ~ 5 5℃ , > 4 5℃ Deratedoperation |
Communication Interface | RS485/CAN / RS232/ Dry contact |
Certificate | ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB |
Customization | OEM, ODM |

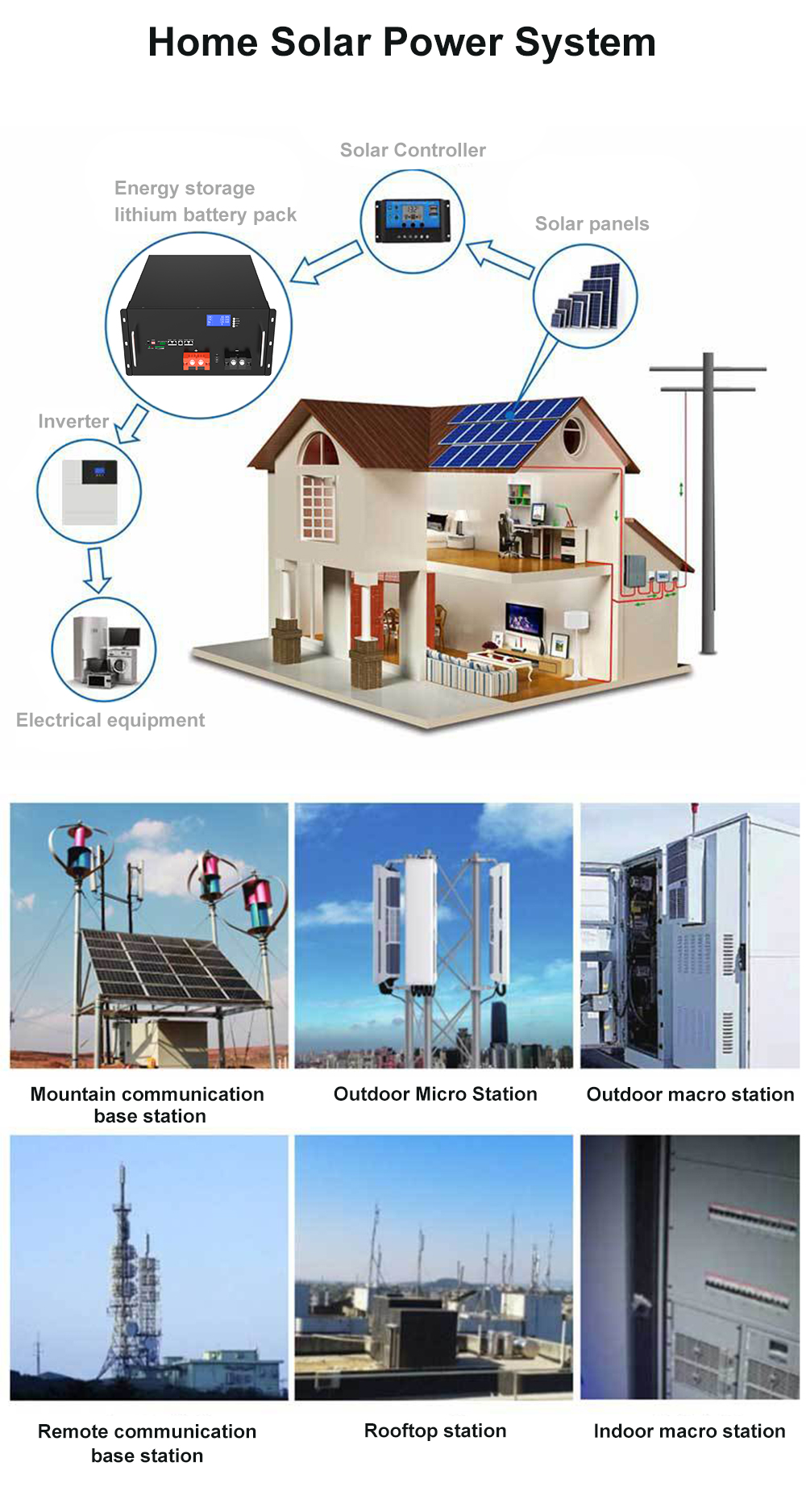

Application | Household energy storage, integrated base stations, etc. |
2.The Advantage of 48V Lithium Iron Phosphate Rack-Mounted Storage Solution:
- Enhanced Efficiency: Thanks to the latest LiFePO4 (Lithium Iron Phosphate) Battery technology, the YABO 48V Scalable Rack-mounted LiFePO4 Battery ensures high efficiency and energy output with minimal heat generation.
- Safety and Reliability: 48V Lithium Iron Phosphate Rack-Mounted Storage Solution equipped with a robust BMS, this battery guarantees safety by preventing common battery failures such as overcharging, short circuits, and temperature imbalance.
- Sustainable and Eco-Friendly: With no toxic chemicals or heavy metals, the 48V Lithium Iron Phosphate Rack-Mounted Storage Solution is a more eco-friendly alternative to traditional lead-acid batteries, contributing to a greener future.
