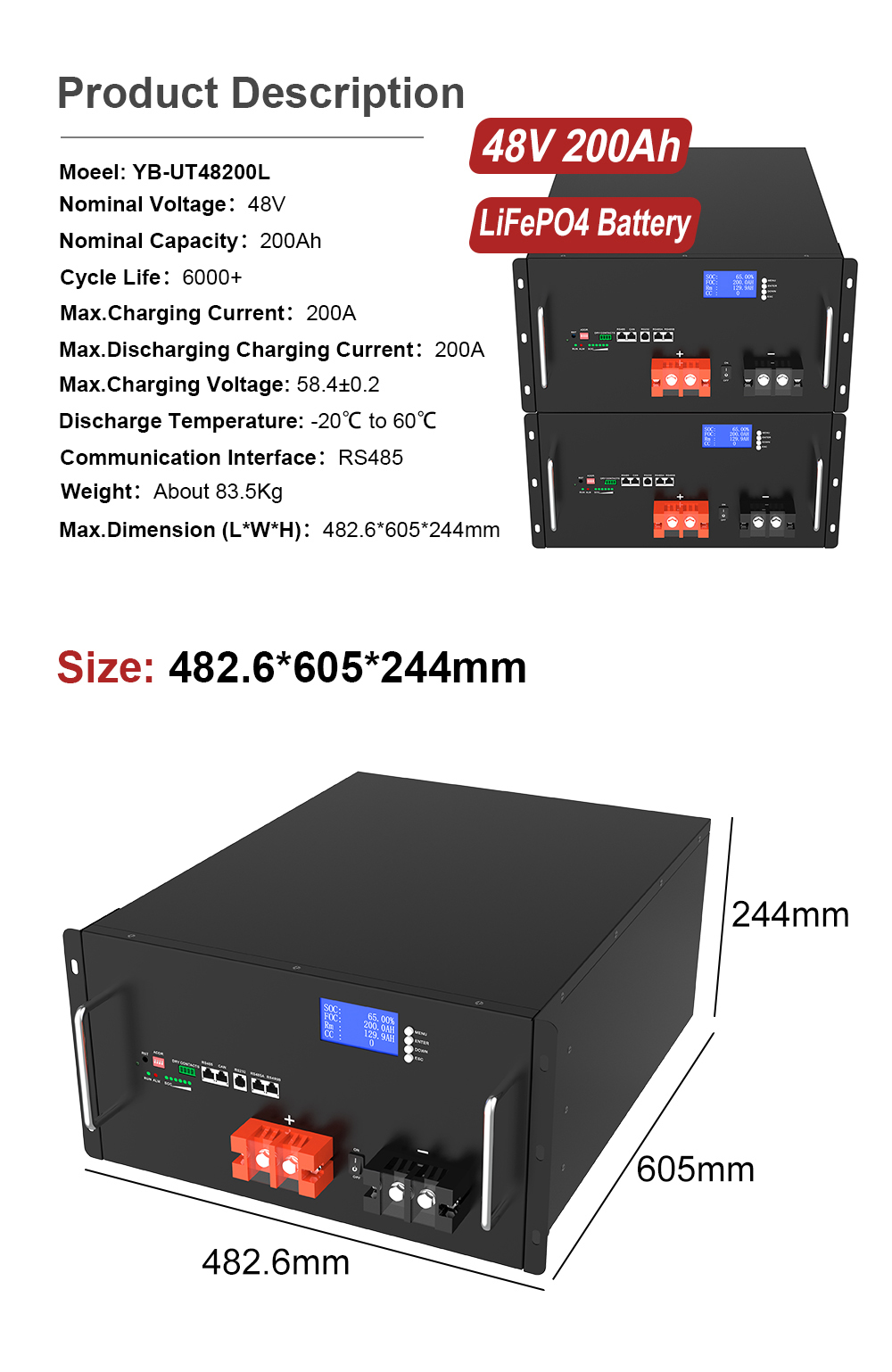

YABO 48V Rack-mounted LiFePO4 Battery Bank
UT48200L-2
Specification：
1. Brand: YABO
2. Capacity: 48V 200Ah
3.Battery Type: LiFePO4 Battery/lithium Battery
4.Output Power Range: 5~10 kWh
5.Warranty:5 years
6.Weight:Approx. 83.5Kg
7.Cycle life: 6000cycles
8. Dimension: 482.6*614.5*244mm
9. Product Name: 48V 200Ah Rack Mount LiFePO4 Battery
10. System Type: Rack-mounted
11. Application: Home Energy Storage, RV, Tower Base Station
1. Brand: YABO
2. Capacity: 48V 200Ah
3.Battery Type: LiFePO4 Battery/lithium Battery
4.Output Power Range: 5~10 kWh
5.Warranty:5 years
6.Weight:Approx. 83.5Kg
7.Cycle life: 6000cycles
8. Dimension: 482.6*614.5*244mm
9. Product Name: 48V 200Ah Rack Mount LiFePO4 Battery
10. System Type: Rack-mounted
11. Application: Home Energy Storage, RV, Tower Base Station
Quantity
1.The Description of 48V Rack-mounted LiFePO4 Battery Bank:
| Electrical Characteristics | Nominal Voltage | 48v |
| Nominal Capacity | 200Ah | |
| Energy | 10240Wh | |
| Internal Resistance | ≤35mΩ | |
| Cycle Life | 6000-10000 Cycles | |
| Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charging | Max.Charging Voltage | 14.0~14.6V |
| Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C 14.6V until the current was not more than 0.02C | |
| Charging Current | 200A | |
| Max.Charging Current | 200A | |
| Standard Discharging | Discharging Current | 200A |
| Max. Continuous Current | 200A | |
| Max.Pulse Current | 210A(10S）can be set up | |
| Recommended Discharge Current | 40 | |
| Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) | |
| Water Dust Resistance | IP55 | |
| Structure | OEM ODM | YES |
| Casing | Mental | |
| Dimension(L*W*H*TH | 482.6*614.5*244mm 5.5U | |
| Weight | Approx.78Kg | |
| Communication Interface | RS485A+RS485B | |
| CAN or RS485 |
2.The Advantage of 48V Rack-mounted LiFePO4 Battery Bank:
- The 48V Rack-mounted LiFePO4 Battery Bank is a high-performance energy storage solution designed for residential and commercial applications. Featuring advanced Lithium Iron Phosphate (LiFePO4 Battery Bank) chemistry, this 48V Rack-mounted LiFePO4 Battery Bank ensures exceptional safety, thermal stability, and longevity, with a cycle life exceeding 6,000 cycles at 80% Depth of Discharge (DoD). Its 48V Rack-mounted LiFePO4 Battery Bank voltage is compatible with a wide range of inverters and home energy management systems, making it versatile and easy to integrate.
- The 48V Rack-mounted LiFePO4 Battery Bank design allows for efficient use of space and straightforward installation in standard equipment racks. Equipped with a robust Battery Management System (BMS), it provides real-time monitoring and protection against over-voltage, over-current, and over-temperature conditions, ensuring reliable operation. This 48V Rack-mounted LiFePO4 Battery Bank is ideal for energy storage in solar power systems, backup power applications, and load shifting, offering homeowners and businesses a dependable and eco-friendly energy solution.
- Cutting-Edge BMS for Superior 48V Rack-mounted LiFePO4 Battery Bank Performance: With our proprietary Battery Management System (BMS), precisely optimized to complement our specific cells, you can expect maximum useful life and unparalleled battery protection, ensuring years of uninterrupted enjoyment. Our industry leading built-in Rack-mounted Battery Management System (BMS) protects the battery cells from overcharge, deep discharge, overloading, overheating, low-temperatures and short circuits.
