YABO 48V Rack-mounted LiFePO4 Energy Solution

UT48170H-4

Specification：
1. Brand: YABO
2. Capacity: 48V 170Ah Rack-mountable LiFePO4 Battery
3. Battery Type: LiFePO4 Battery/lithium Battery
4. Output Power Range: 5~10 kWh
5. Warranty: 5 years
6. Weight: Approx. 62.5Kg
7. Cycle life: 6000cycles

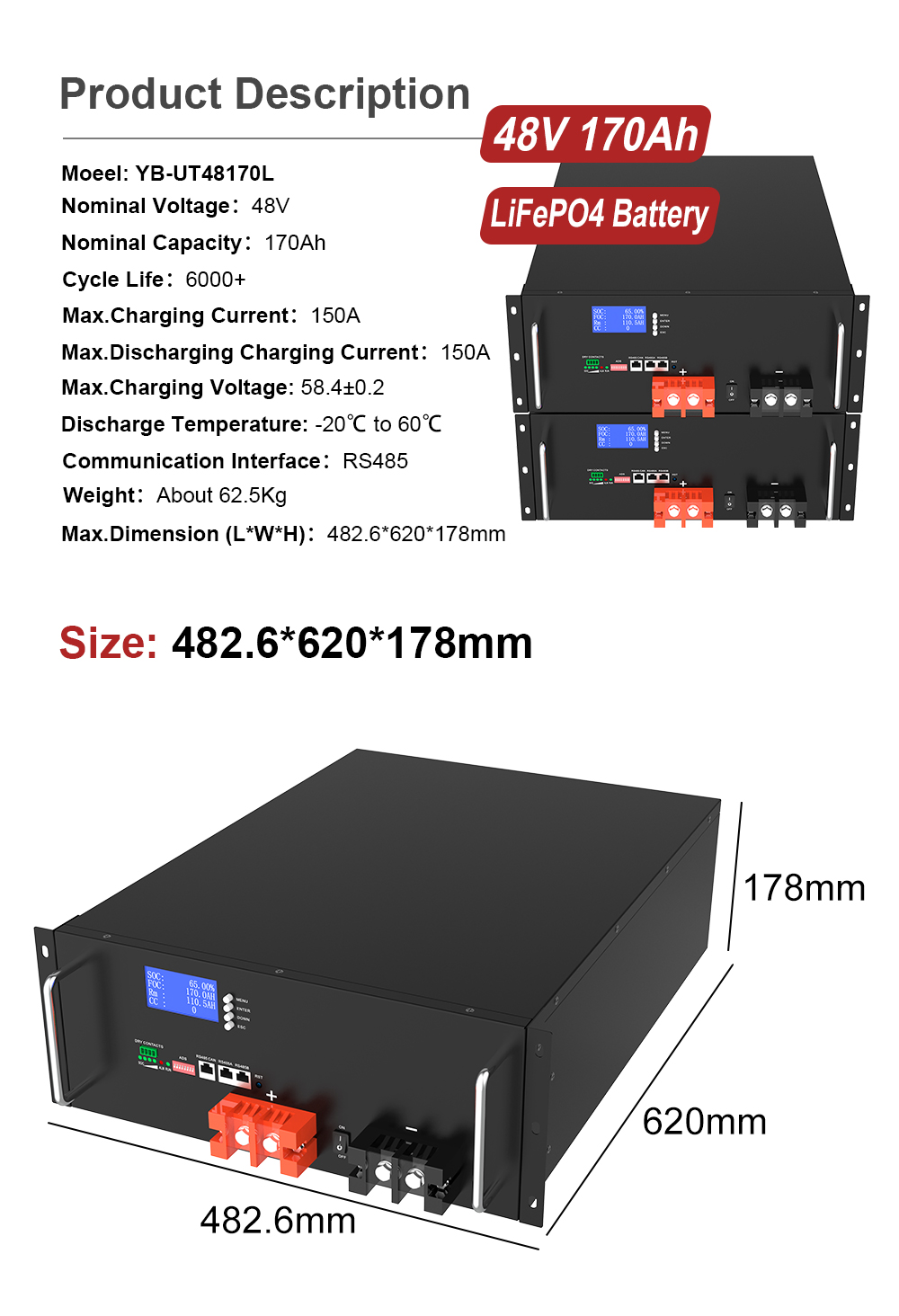

8. Dimension: 482.6*620*178mm
9. System Type: Rack-mounted
10. Application: Home Energy Storage, RV, Tower Base Station

Quantity

Contact Now

add to cart

1.The Description of 48V Rack-mounted LiFePO4 Energy Solution:

Electrical Characteristics	Nominal Voltage	48V
	Nominal Capacity	170Ah
	Energy	8704Wh
	Internal Resistance	≤35mΩ
	Cycle Life	6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
	Self Discharge	≤3.5% per month at 25℃
Standard Charging	Max.Charging Voltage	14.0~14.6V
	Charging Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C
	Charging Mode	14.6V until the current was not more than 0.02C
	Charging Current	150A
	Max.Charging Current	150A
Standard Discharging	Discharging Current	150A
	Max. Continuous Current	150A
	Max.Pulse Current	170A(<5S）
	Recommended Discharge Current	75A
Operating Condition	Charge Temperature	0℃ to 45℃(32℉ to 113℉)
	Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉)
	Storage Temperature	0℃ to 45℃(32℉ to 113℉)
	Water Dust Resistance	IP55
Structure	OEM ODM	YES
	Casing	Mental
	Dimension	482.6620178mm
	Weight	Approx.62.5Kg
	Communication Interface	RS485A+RS485B
	Communication Interface	CAN or RS485

48V Rack-mounted LiFePO4 Energy Solution are a highly efficient, long-lasting energy storage solution used in a wide range of applications such as renewable energy systems, telecom equipment and data centers. These 48V Rack-mounted LiFePO4 Energy Solution are known for their high energy density and long cycle life, typically providing thousands of charge/discharge cycles with low self-discharge rates and excellent safety. An integrated LiFePO4 Energy Solution management system ensures performance and safety and is designed for Rack-mounted LiFePO4 Energy Solution for easy expansion and installation. Adaptability and stability make 48V Rack-mounted LiFePO4 Energy Solution ideal for a variety of energy reserve and backup power applications.

2.The Advantage of 48V Rack-mounted LiFePO4 Energy Solution：

Reliability: 48V Rack-mounted LiFePO4 Energy Solution delivers consistent power supply, reducing downtime and ensuring operational continuity.
Space Efficiency: Maximizes available space in server racks, allowing for better resource management.
Ease of Maintenance: Simplifies maintenance with easy access to components and remote monitoring capabilities.
Cost-Effective: 48V Rack-mounted LiFePO4 Energy Solution reduces overall energy costs through high efficiency and long service life.
