YABO 48V Wall-mounted LiFePO4 Battery Pack
1. Brand: YABO
2. Dimension: 480*430*190mm
3. Battery Type: LiFePO4 Battery/lithium Battery
4. Output Power Range: 5~10 kWh
5. Warranty: 5 years
6. Weight: Approx. 46.5Kg
7. Cycle life: 6000cycles
8. System Type: Wall-mounted
9. Compatible inverter: GOODWE, Growatt,Victron ,MUST,SRNE, MEGAREVO,Deye, INVT,Voltronic ect
10. Application: Solar, Wind, UPS Solar Power System Home
11. Communication Port: CAN, rs485, WIFI, 4G, Blue Tooth
1.The Specification of 48V Wall-mounted LiFePO4 Battery Pack:
Brand Name | YABO |
Nominal Voltage | 48V |
Nominal Capacity | 100Ah |
Size (L*W* H) | 415*570*150mm |
Weight | 46.5kg |
Cycle Life | 6000 times ,80% DOD |
Maximum Parallel Quantity | 15PCS |
Warranty | 5 years |
Working Temperature | 0 ~ 5 0℃ |
Shelf Temperature | -20~ 6 0℃ |
Communication Interface | RS485/CAN / RS232/ Dry contact |
Certificate | ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB |
Customization | OEM, ODM |
Application | Household energy storage. |
System Type | Wall-mounted LiFePO4 Battery Pack |
Product Name | 48V Wall-mounted LiFePO4 Battery Pack |
2.The Description of 48V Wall-mounted LiFePO4 Battery Pack:

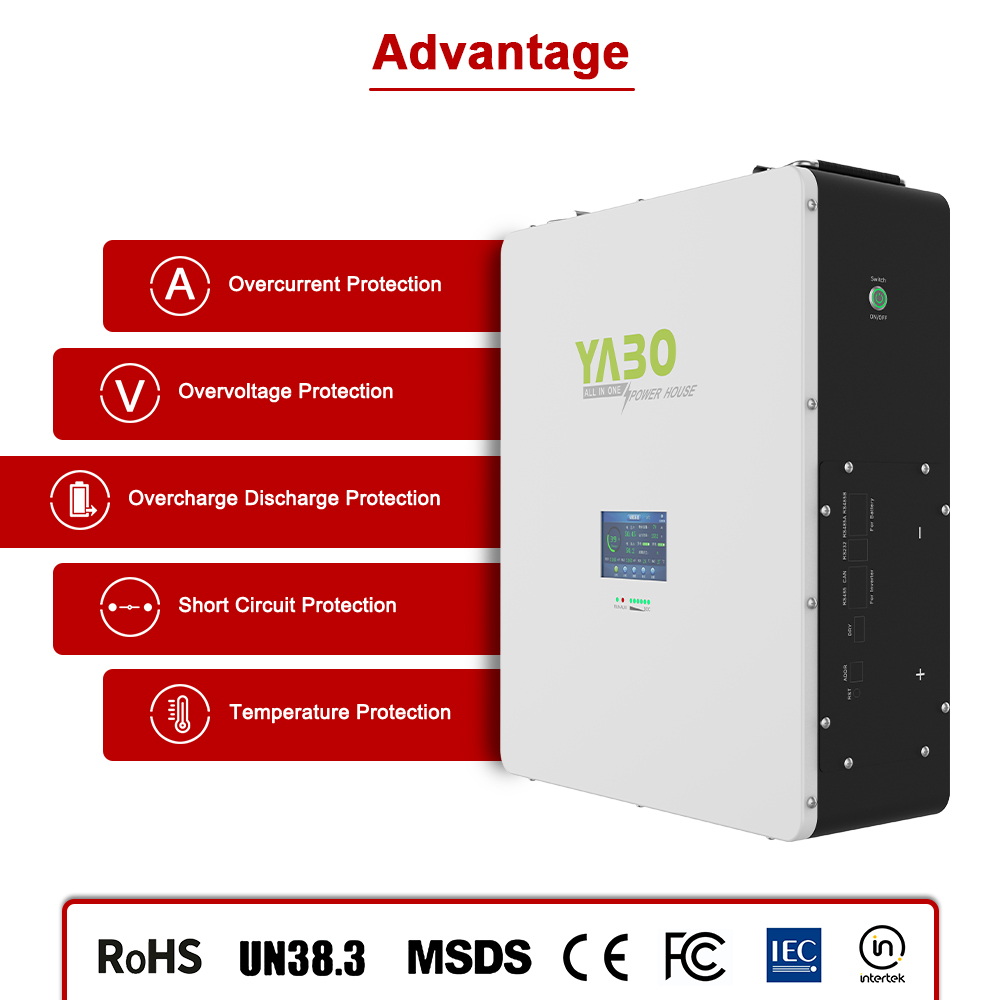

A 48V Wall-mounted LiFePO4 Battery Pack is an efficient and reliable energy storage system designed for residential and commercial backup power applications. This 48V Wall-mounted LiFePO4 Battery Pack boasts excellent energy density and safety, saving valuable floor space through wall-mounted installation. Its built-in advanced Battery Management System (BMS) monitors the Wall-mounted LiFePO4 Battery Pack status in real time, providing overcharge, over-discharge, short circuit, and temperature protection to ensure safe and stable operation. The long cycle life of the Powerwall Energy storage System means it can maintain excellent performance over many charge and discharge cycles, reducing replacement frequency and maintenance costs. Its efficient power conversion capability minimizes energy loss, making it ideal for uninterruptible power systems (UPS), renewable energy storage system (such as solar and wind power), home energy storage, and small commercial applications. In summary, the 48V Wall-mounted LiFePO4 Battery Pack combines advanced technology with flexible design, providing users with an efficient, reliable, and environmentally friendly power solution.
